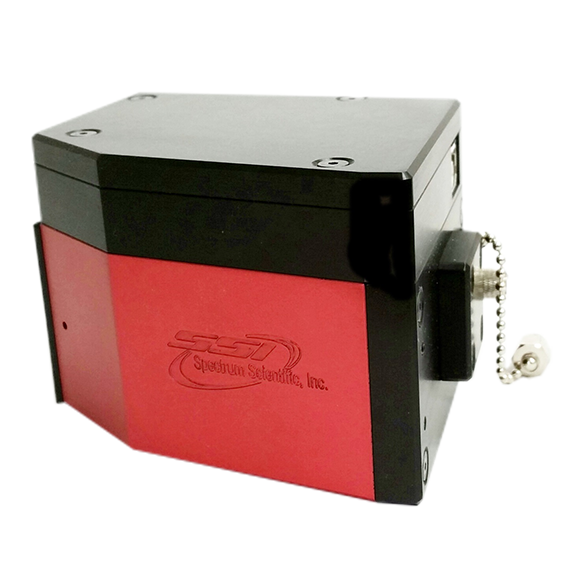

UV-470 Standard

Spectrum Scientific’s UV-470 spectrometer incorporates an aberration corrected concave holographic grating, blazed to offer peak performance in the UV region. The UV-470 spectrometer operates over the spectral range 190-850 nm.

The single holographic optical element design, delivers low stray light (0.07% @340 nm) which enhances the signal to noise ratio. You can select your slit size or order the UV-470 without the driver board for OEM Applications.

UV-470 Standard
UV-470 Standard
Advanced Filter

Product Groove Density (g/mm)

Product Wavelength of Peak Efficiency (nm)

Product Wavelength Range (nm)

Product Coating

Product Dimensions (mm)

Product Lead Time

Product Apex Distance (inches)

Product Beam Deviation (arcsec)

Product Blaze Wavelength (nm)

Product Clear Aperture (mm)

Product Clear Aperture (%)

Product Deflection Angle (deg)

Product Deviation Angle (deg)

Product Dia. (mm)

Product Dispersion (nm/mm)

Product Effective Fl (mm)

Product F Nbr

Product Lα (mm)

Product Lβ (mm)

Product Parent Fl (mm)

Product Peak Efficiency (%)

Product Size (mm)

Product Spectrum Length (mm)

Product Substrate

Product Surface Accuracy

ComparePart NumberProduct DescriptionPriceLead TimeQuantityMore
Compare UV-470-S UV-470 Standard Spectrometer $3495 2-4 Wks
Part Number: UV-470-S
Price: $3495
Lead Time2-4 Wks
Grating Type470 g/mm aberration corrected concave grating.
Focal Length70mm
Spectral Range190-850 nm
Resolution1.4 nm @ 190-850 nm
F Nbr2.0
Signal to Noise1200:1
Stray Light @ 340nm<0.07%
Stray Light @ 435nm<0.01%
Dispersion21.3 nm/mm
Slit Size15 μm standard. 25, 50 and 100 μm by request
Dynamic Range2000:1
Integration Time0.1 ms to 6.5 sec
Pixel Size8 μm x 200 μm
Pixel Well Depth100,000 electrons
A/D Resolution16 bit
Fiber Optic InputSMA 905, 0.22 NA
InterfaceUSB 2.0
Power300 mA via USB
Operating SystemWindows XP / Windows 7
Dimensions96.5 x 72.5 x 63.5 mm
Weight1.09 lbs (0.5 kg)
Operating Temp0° to 55°C
