Sinusoidal Holographic Gratings

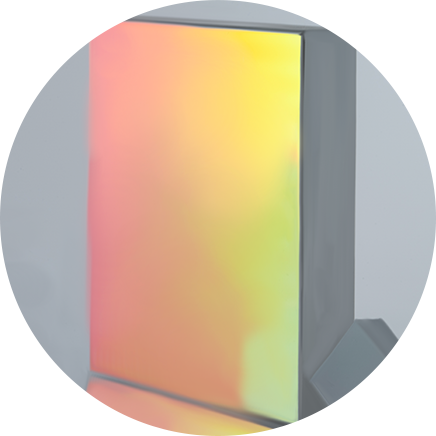

Spectrum Scientific’s holographic gratings are produced using interference lithography. This process results in a smooth groove surface and eliminates the periodic errors found in ruled gratings. Because of this, holographic gratings are commonly used in applications where stray light is a concern.

Sinusoidal groove profiles are the most common groove shape for holographic gratings. The grooves are symmetrical and therefore have no blaze direction. A sinusoidal grating offers a wider spectral coverage compared to a blazed grating, but has lower efficiency.

Our stock gratings are available in 12.5 x 12.5 mm and 25 x 25 mm sizes but we can supply our standard range of gratings up to 90 x 90 mm or greater.

For volume pricing or custom designs, please complete our Request Information form or contact our sales team to discuss your specific requirements.

Sinusoidal Holographic Gratings
Sinusoidal Holographic Gratings
Advanced Filter

Product Groove Density (g/mm)

Product Wavelength of Peak Efficiency (nm)

Product Wavelength Range (nm)

Product Coating

Product Dimensions (mm)

Product Lead Time

Product Apex Distance (inches)

Product Beam Deviation (arcsec)

Product Blaze Wavelength (nm)

Product Clear Aperture (mm)

Product Clear Aperture (%)

Product Deflection Angle (deg)

Product Deviation Angle (deg)

Product Dia. (mm)

Product Dispersion (nm/mm)

Product Effective Fl (mm)

Product F Nbr

Product Lα (mm)

Product Lβ (mm)

Product Parent Fl (mm)

Product Peak Efficiency (%)

Product Size (mm)

Product Spectrum Length (mm)

Product Substrate

Product Surface Accuracy

ComparePart NumberProduct DescriptionPriceGroove Density (g/mm)Peak Efficiency (%)QuantityMore
Compare 1200-700-012 1200 g/mm, 700nm Holographic Grating, 12.5 x 12.5 x 6mm $85 1200 69%
Part Number: 1200-700-012
Price: $85
Groove Density (g/mm)1200
Wavelength of Peak Efficiency (nm)700
Peak Efficiency (%)69%
Wavelength Range (nm)350-1600
CoatingGold
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 1200-700-025 1200 g/mm, 700nm Holographic Grating, 25 x 25 x 6mm $125 1200 69%
Part Number: 1200-700-025
Price: $125
Groove Density (g/mm)1200
Wavelength of Peak Efficiency (nm)700
Peak Efficiency (%)69%
Wavelength Range (nm)350-1600
CoatingGold
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 1300-800-012 1300 g/mm, 800nm Holographic Grating, 12.5 x 12.5 x 6mm $85 1300 70%
Part Number: 1300-800-012
Price: $85
Groove Density (g/mm)1300
Wavelength of Peak Efficiency (nm)800
Peak Efficiency (%)70%
Wavelength Range (nm)525-1500
CoatingGold
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 1300-800-025 1300 g/mm, 800nm Holographic Grating, 25 x 25 x 6mm $125 1300 70%
Part Number: 1300-800-025
Price: $125
Groove Density (g/mm)1300
Wavelength of Peak Efficiency (nm)800
Peak Efficiency (%)70%
Wavelength Range (nm)525-1500
CoatingGold
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 1740-1053-012 1740 g/mm, 1053nm Holographic Grating, 12.5 x 12.5 x 6mm $85 1740 94%
Part Number: 1740-1053-012
Price: $85
Groove Density (g/mm)1740
Wavelength of Peak Efficiency (nm)1053
Peak Efficiency (%)94%
Wavelength Range (nm)550-1145
CoatingGold
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 1740-1053-025 1740 g/mm, 1053nm Holographic Grating, 25 x 25 x 6mm $125 1740 94%
Part Number: 1740-1053-025
Price: $125
Groove Density (g/mm)1740
Wavelength of Peak Efficiency (nm)1053
Peak Efficiency (%)94%
Wavelength Range (nm)550-1145
CoatingGold
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details
Compare 700-1100-012 700 g/mm, 1100nm Holographic Grating, 12.5 x 12.5 x 6mm (S-Pol) $85 700 66%
Part Number: 700-1100-012
Price: $85
Groove Density (g/mm)700
Wavelength of Peak Efficiency (nm)1100
Peak Efficiency (%)66%
Wavelength Range (nm)950-2800
CoatingGold
Size (mm)12.5 x 12.5 x 6
Lead Time2-4 Wks
Hide Details
Compare 700-1100-025 700 g/mm, 1100nm Holographic Grating, 25 x 25 x 6mm $125 700 66% (S Pol)
Part Number: 700-1100-025
Price: $125
Groove Density (g/mm)700
Wavelength of Peak Efficiency (nm)1100
Peak Efficiency (%)66% (S Pol)
Wavelength Range (nm)950-2800
CoatingGold
Size (mm)25.0 x 25.0 x 6
Lead Time2-4 Wks
Hide Details

Please complete our Request Information form or contact our sales team to discuss your specific requirements.
